Some information we need to know before making the price for prefab warehouse steel structure building
|
||
|
Category
|
Application Scenarios & Advantages
|
|
|
BuildingStructure
|
Portal steel frame structure
|
Light load,small span
|
|
Frame structure
|
Multi laver or medium load
|
|
|
Truss、Grid structure
|
Large span、heavy load
|
|
|
Suspended Cable Structure
|
Crane operation required
|
|
|
Number of Layers
|
Single layer
|
Convenience and large space
|
|
Multilayer
|
Space utilization and functional zoning
|
|
|
Ordinary
|
Raw material warehouse,transit warehouse,etc
|
|
|
Usage Function
|
Refrigerate
|
Cold storage、cold chain logistics center、etc
|
|
Dangerous goods
|
Dangerous goods storage facility、oil depot、etc
|
|
|
Bonded
|
Storage of qoods in international trade
|
|
|
Material list
|
||
|

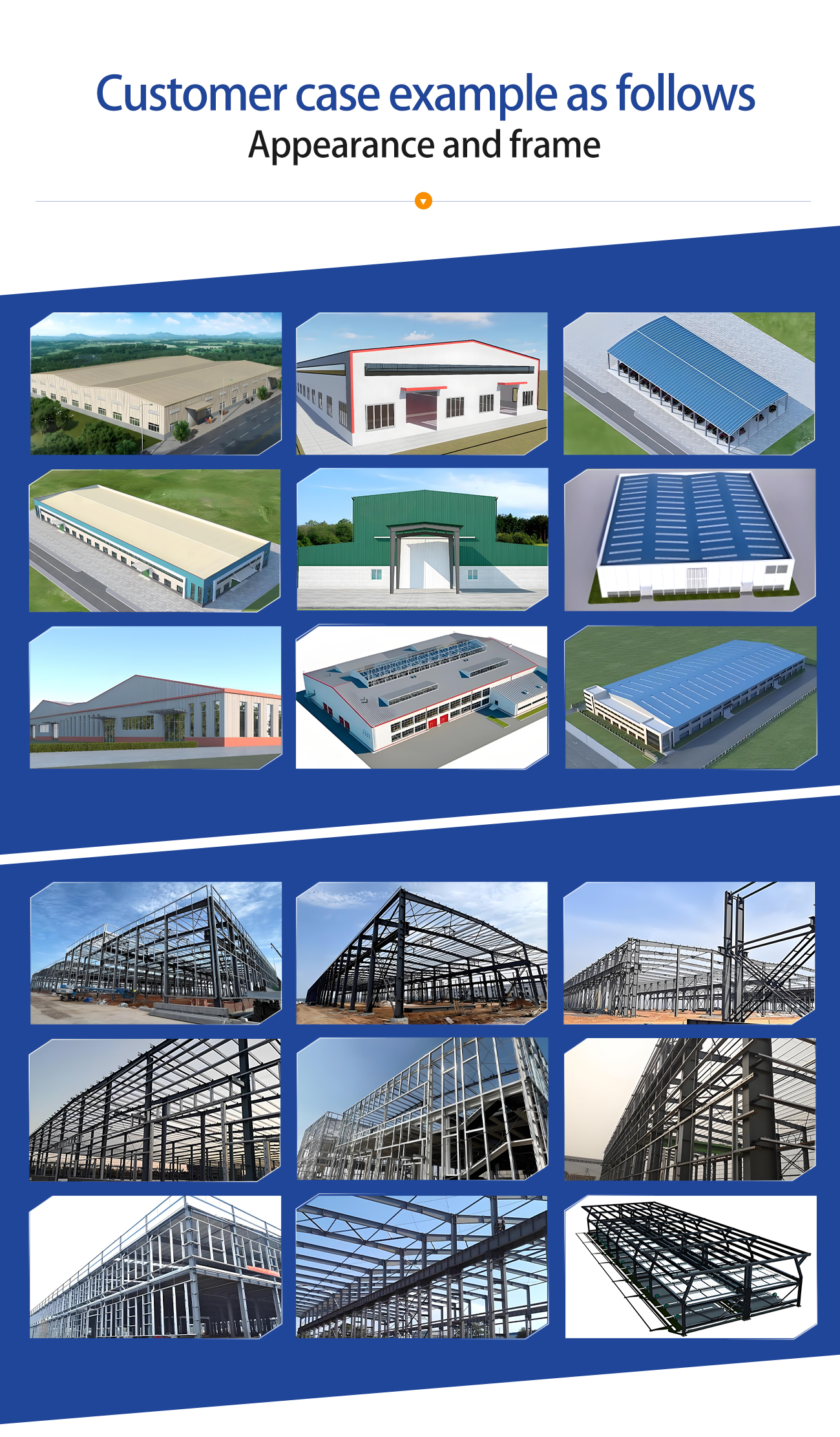

Project sample
|
Steel structure warehouse
|
|
|
Building size
|
Such as 78*30*8.5 m/ customized
|
|
|

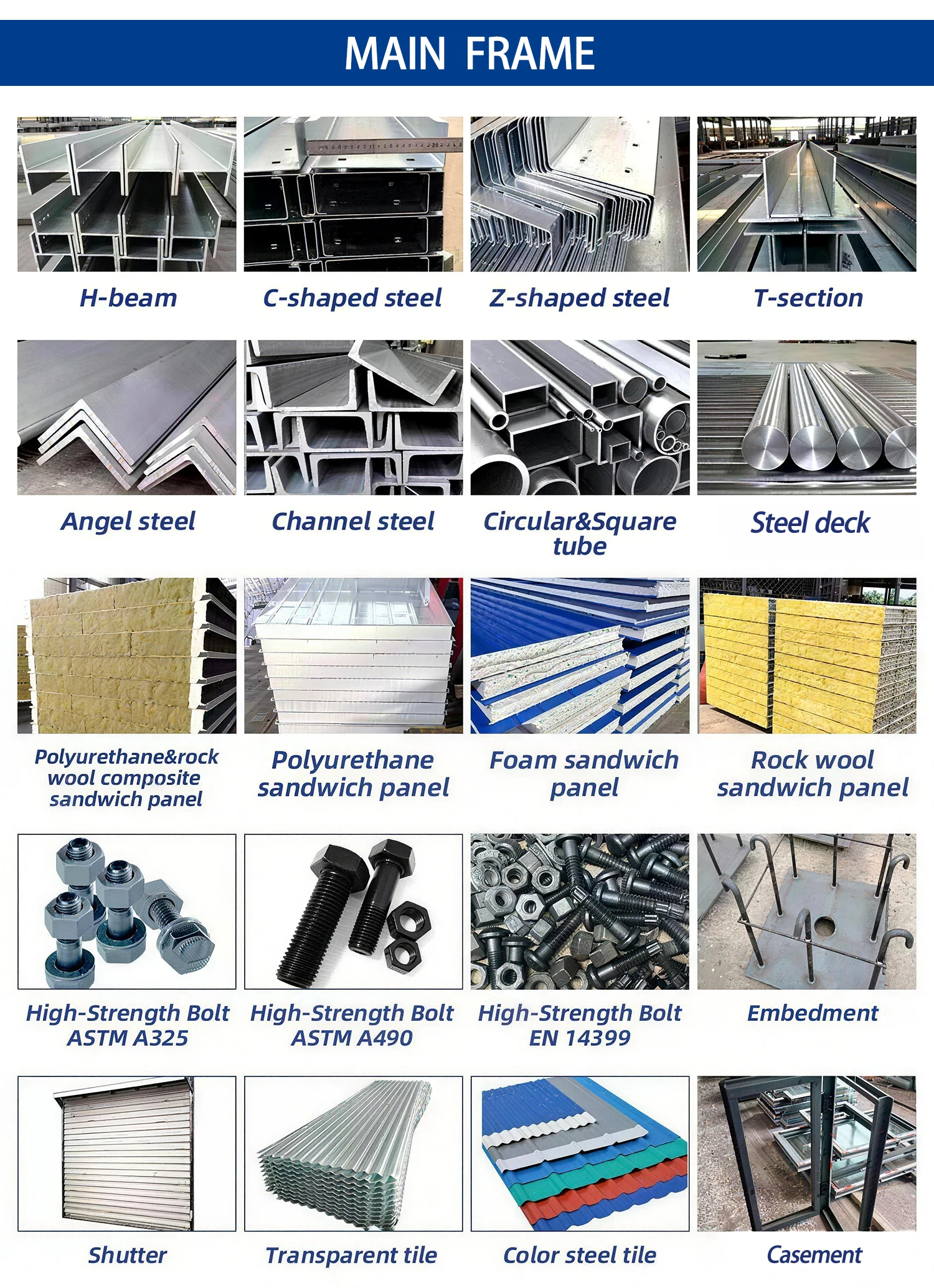

Main steel structure
|
||
|
Steel beam
|
H300*300*10*6 mm, H 180*180*10*6 mm,steel Q345
|
|
|
Steel column
|
H200*200*10*6 mm , steel Q345
|
|
|
Second steel structure
|
||
|
Roof purline
|
C180*75*50*2.5 mm
|
|
|
Wall purline
|
C180*75*50*2.5 mm
|
|
|
Cross support
|
20 round steel bar, steel Q 235
|
|
|
Column bracing
|
20 round steel bar, steel Q 235
|
|
|
Angle brace
|
∠ 50*4 Angle steel , steel Q 235
|
|
|
Tie bar
|
89*3 mm, round steel Q235
|
|
|
Roof and wall panel
|
||
|
Roof panel
|
50/80/100/120/150/200 mm sandwich panel (EPS, PU, Rock wool)
|
|
|
Wall panel
|
50/75/100/120/150/200 mm sandwich panel (EPS, PU, Rock wool)
|
|
|
door
|
Single wing door（Sandwich panel door）
|
|
|
Window
|
Aluminum/ PVC sliding window with single glass
|
|
|
Fittings
|
Glass adhesive, self-tapping screw, etc
|
|
|
Other fittings
|
||
|
Embedded
|
M 24 steel Q 235, process
|
|
|
Intensive bolt
|
Grade 10.9
|
|
|
Ordinary bolt
|
Grade 4.85
|
|
 Laser cutting machine |
 Gantry submerged arc welding |
 Fully automatic robot welding |
 Related wire cutting machine |
 Box-type component intelligent line |
 Automated steel structure welding |
 Automatic H-beam welding |
 Assembly machine |
