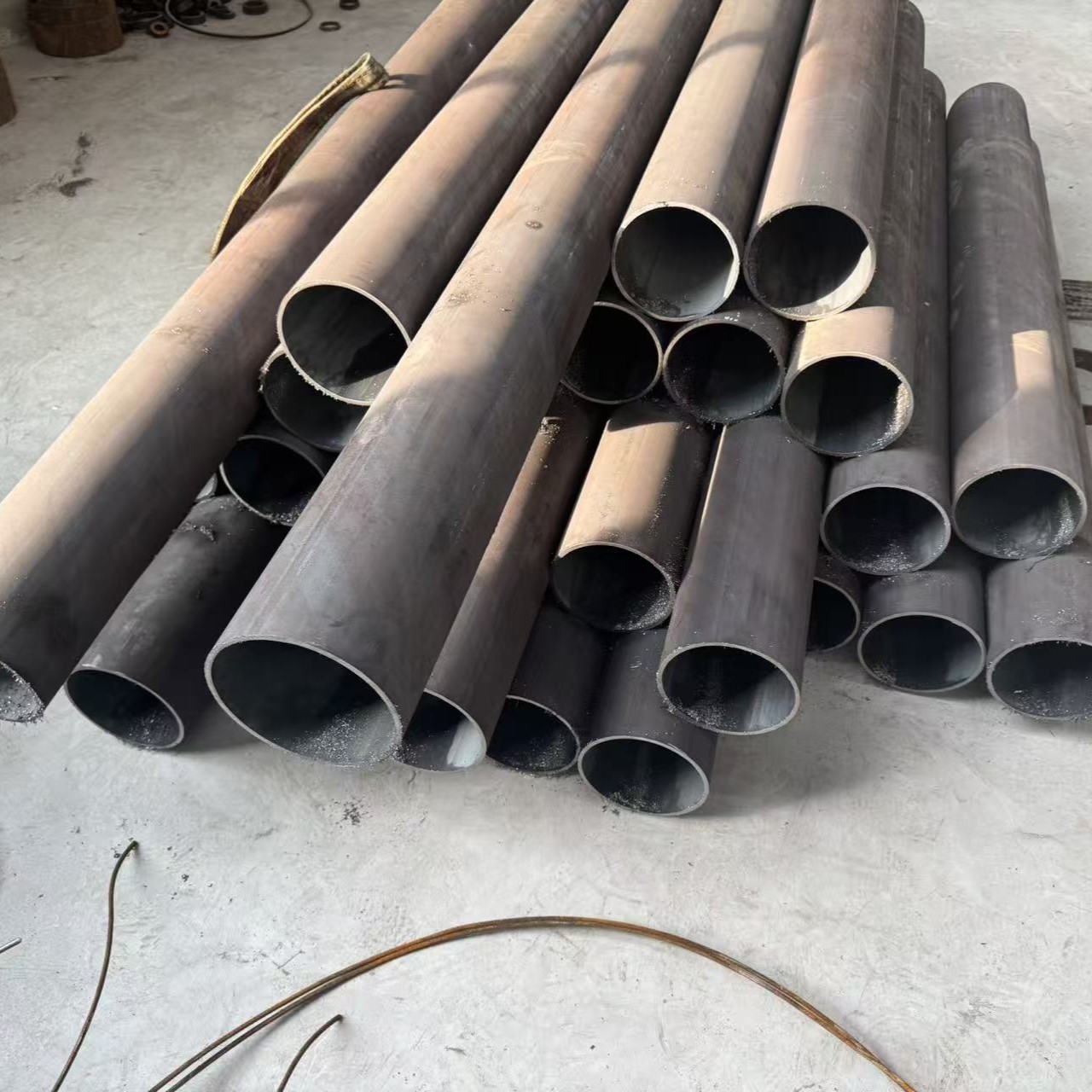

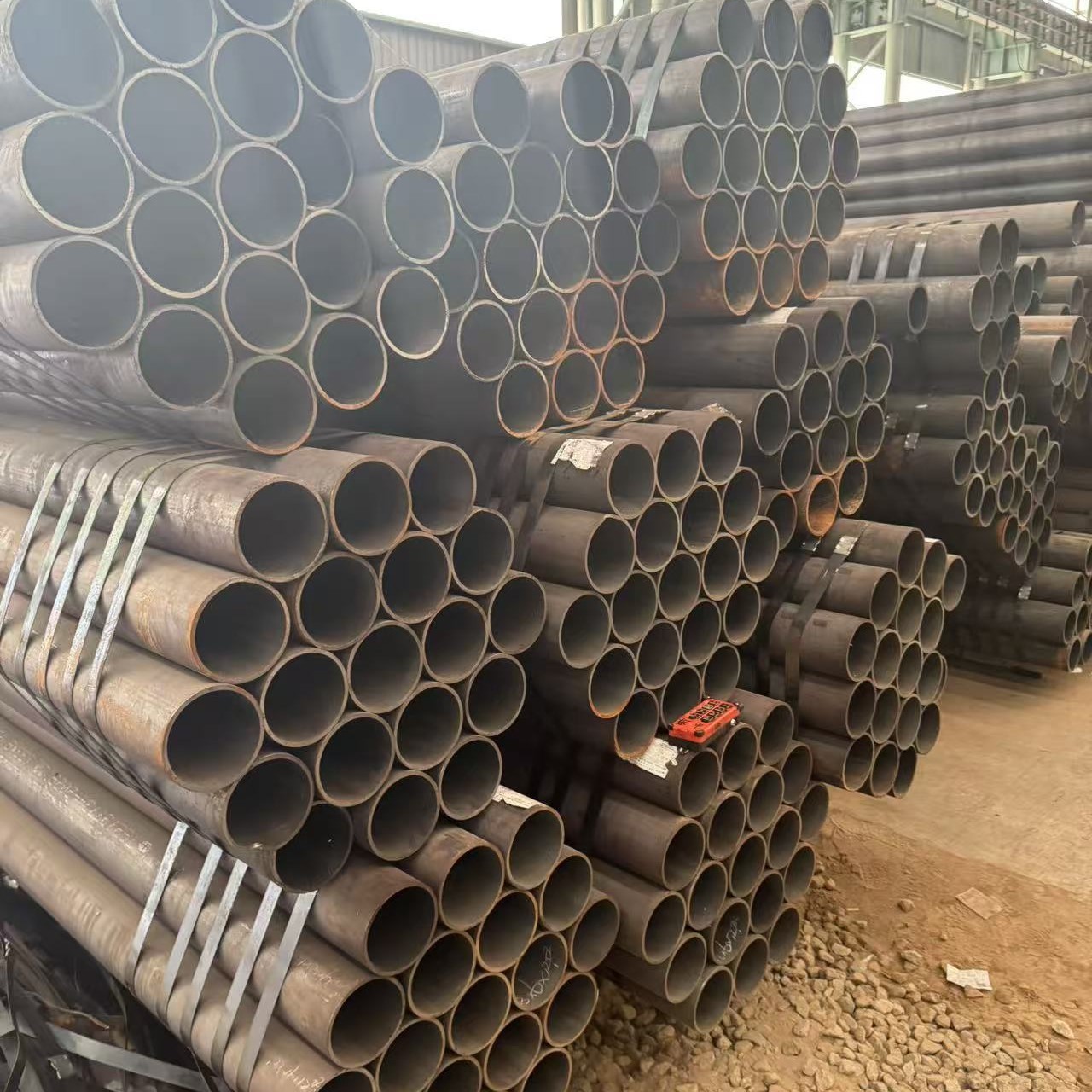

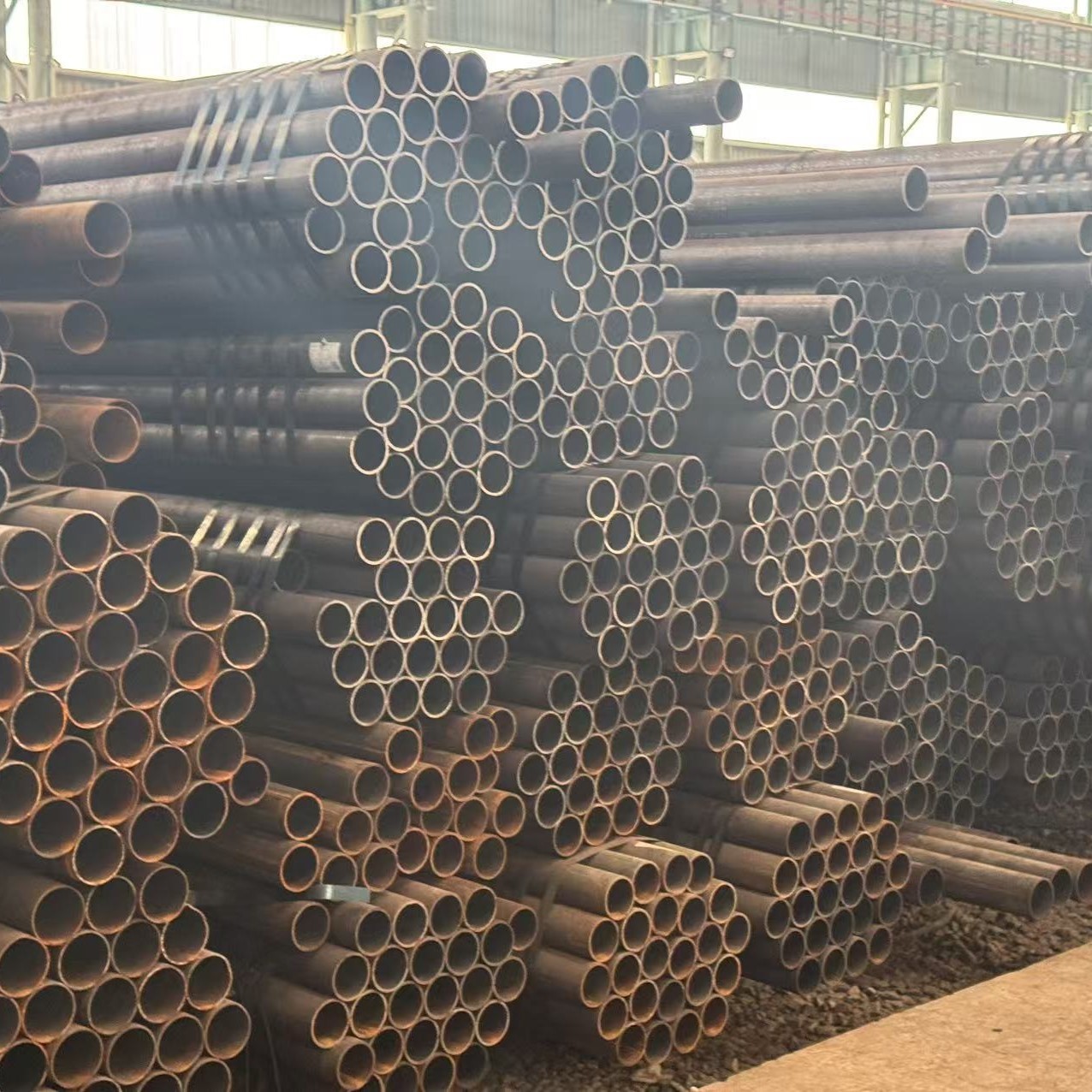

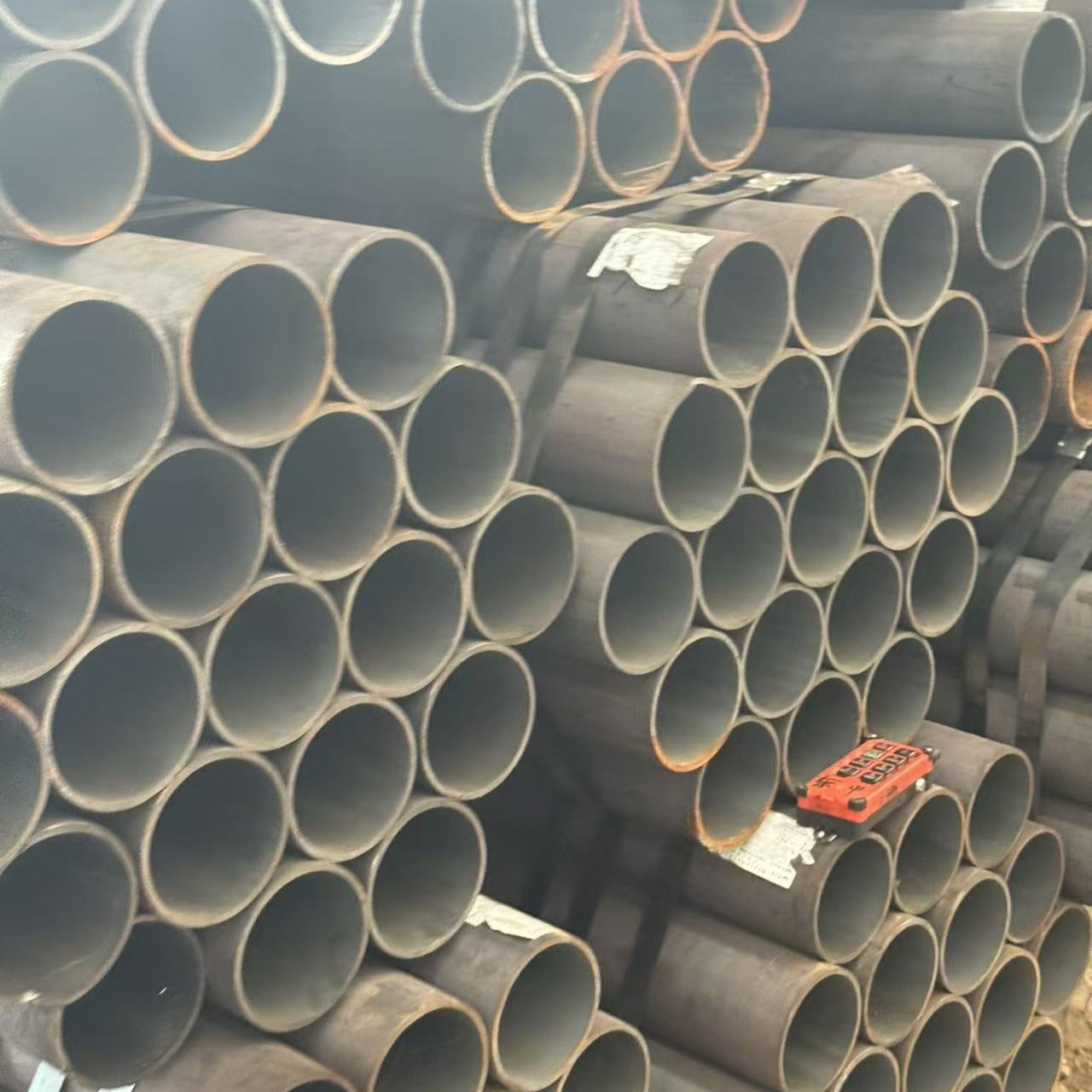

Seamless steel pipe is a steel pipe made by heating a solid steel billet at high temperature and then processing it through perforation, rolling and other processes. Its notable feature is that it has no welding seams and has a continuous tubular structure as a whole.

Email : hanstatsteel@gmail.com
Phone/Whatsapp : +15264150304
Addess : Huaiyin District,Jinan City,Shandong,China

GET A QUOTE

공유하다:

Description

• Outer Diameter (OD): Ranges from small (e.g., 1 inch) to large (e.g., 24 inches), depending on the specific application and drilling requirements.

• Wall Thickness: Varies from thin to thick, depending on the required strength and pressure resistance. Typically, the wall thickness is chosen to ensure the pipe can withstand the specific drilling conditions.

• Length: Standard lengths can range from 5 to 30 meters, but pipes can be joined together to achieve longer lengths as needed for deeper drilling operations.

• Surface Treatment: May include processes such as shot blasting, painting, or coating with protective materials to enhance corrosion resistance and durability.

• Threading and Couplings: Many geological drilling pipes have threaded ends for easy connection and disconnection during drilling operations. Special couplings may also be used for secure and leak-proof connections.

• Tolerances: Strict tolerances are maintained for dimensions such as outer diameter, wall thickness, and length to ensure consistent performance and compatibility with drilling equipment.

• Heat Treatment: May include quenching and tempering to achieve the desired mechanical properties, such as tensile strength, yield strength, and toughness.

Enhanced Manufacturing Process:

1. Machining: After initial rolling, the steel pipes may undergo machining to achieve precise dimensions and smooth surfaces.

2. Non-Destructive Testing (NDT): Techniques such as ultrasonic testing, eddy current testing, or magnetic particle inspection are used to detect any internal or surface defects in the pipes.

3. Quality Control: Rigorous quality control measures are implemented at each stage of manufacturing to ensure the pipes meet the required standards and specifications.

Applications:

• Environmental Drilling: Used for environmental assessments, including soil and groundwater sampling, to evaluate environmental conditions and potential hazards.

• Hydrogeological Studies: Employed in drilling to study the properties and distribution of groundwater, which is crucial for water resource management.

• Construction Piling: Used in the construction industry for creating piles to support structures, ensuring stability and load-bearing capacity.

Standards and Quality:
• API 5DP: American Petroleum Institute standard for drill pipe used in oil and gas drilling.
• ISO 1196: International Organization for Standardization standard for drill pipes.
• DIN 1629: German Industrial Standard for seamless steel tubes for drilling purposes.

Benefits:

• High Reliability: The seamless construction ensures there are no weak points due to welds, making the pipes highly reliable in critical drilling operations.

• Long Service Life: The use of high-quality materials and advanced manufacturing processes results in pipes that can withstand the rigors of drilling for extended periods.

• Versatility: Suitable for a wide range of drilling applications, from shallow to deep drilling, and in various geological conditions.

Seamless steel pipes for geological drilling are a critical component in the exploration and extraction of natural resources, providing the necessary strength, durability, and reliability required for successful operations.

The precise control over parameters and adherence to stringent standards ensure these pipes perform reliably under the challenging conditions encountered in geological drilling.

Packaging & Delivery

Performance

1. Mechanical properties

High strength: seamless pipes have no welds, and the overall strength is higher than that of welded pipes, suitable for high pressure and impact loads;

Fatigue resistance: not easy to crack under cyclic loads, suitable for vibration environments (such as mechanical transmission pipes).

2. Corrosion resistance

Stainless steel material: 304/316L seamless pipes are resistant to acid, alkali and salt corrosion and are widely used in chemical and marine engineering;

Surface treatment: galvanizing (Zn), epoxy resin coating (EP), and polyethylene lining (PE) can further enhance the corrosion resistance.

3. Process performance

Weldability: Carbon steel and low alloy steel seamless pipes can be connected by welding, and stainless steel pipes require special welding materials;

Processability: Can be bent, expanded, reduced in diameter and other processing (cold-rolled pipes are easier to form).

4. Sealing

The weld-free design is suitable for scenarios with high sealing requirements (such as gas pipelines and hydraulic systems).

Black Surface Seamless Carbon Steel Tube for Q195-Q345 Grade

FAQ

1. Q: What is the difference between seamless pipes and welded pipes?

Structure: Seamless pipes have no welds, and welded pipes have longitudinal or spiral welds;

Strength: Seamless pipes have higher overall strength and are suitable for high-pressure scenarios (such as boilers and hydraulic systems);

Cost: The production process of seamless pipes is complex, and the price is 10%-30% higher than that of welded pipes.

2. Q: How to choose the material of seamless pipe?

General environment: choose Q235 or 20# carbon steel (low cost, easy to process);

Corrosive environment: choose 304/316L stainless steel or galvanized seamless pipe;

High temperature and high pressure: choose 15CrMo, 12Cr1MoV and other alloy pipes (specific temperature and pressure parameters must be provided).

3. Q: Can the size of seamless pipe be customized?

Regular specifications (outer diameter 6-630mm, wall thickness 0.5-50mm) can be customized in length (such as fixed length 6m, 9m);

Special caliber or wall thickness requires mold production, the minimum order quantity is higher (usually ≥5 tons), and the delivery time is extended by 2-4 weeks.

4. Q: How to detect the quality of seamless pipes?

Answer:

Appearance: no cracks, folds, or scars on the surface, and uniform wall thickness;

Non-destructive testing: ultrasonic (UT) and eddy current (ET) detection of internal defects;

Pressure test: water pressure test (such as water pressure 10MPa, pressure maintenance for 5 minutes without leakage).

5. Q: How to prevent rust during transportation of seamless pipes?

Answer:

Short-term transportation: can be naked in dry environment, and covered with waterproof cloth in humid environment;

Long-term storage: stored in a dry warehouse, ≥20cm from the ground, regularly check the surface rust, and re-oil if necessary.
